Folding Vacuum Insulated Boxes

(For short-term storage and transportation)

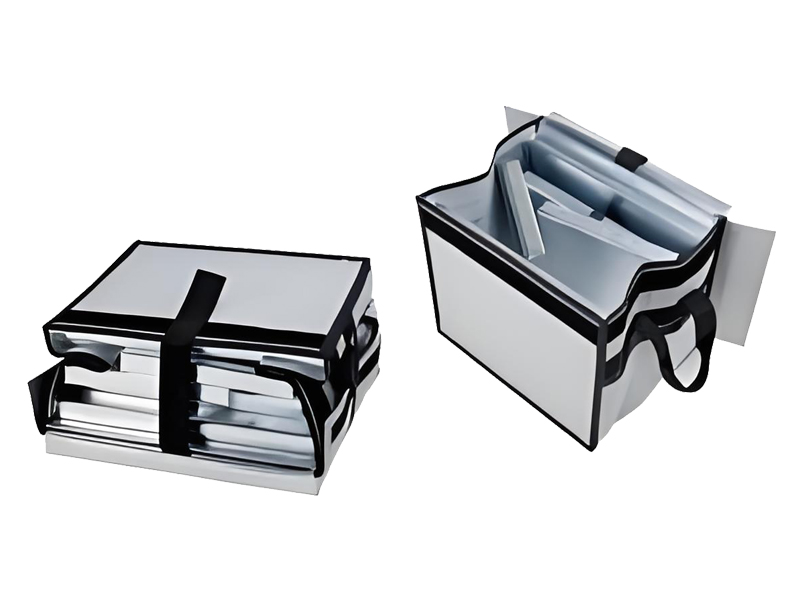

Folding Vacuum Insulated Boxes
Non-woven cooler bag + PU + VIP

Such kind of vacuum insulated box can be applied to the recycling and reusing of medicine, fresh food and other types of food, largely making our life convenient.

Features
  • High performance VIP as the core insulation layer;
  • Outstanding thermal insulation property;
  • Detachable and can be folded;
  • Easy to operate and carry;
Parameters
Box Type Internal size External size Internal Volume Box Weight Box Thickness Duration Time (2~8℃) PCM Weight
STPS-V12a 140*290*290 170*320*320 12L 1.6kg 15mm / /
STPS-V18a 320*320*175 350*350*225 18L 1.9kg 15mm / /
STBD-V15a 370*200*200 400*230*240 14.8L 2kg 20mm 2~12h 1~4kg
STBD-V43a 420*310*330 476*366*406 43L 4kg 25mm 2~24h 2~6kg
  • Folding Vacuum Insulated Boxes
  • Folding Vacuum Insulated Boxes

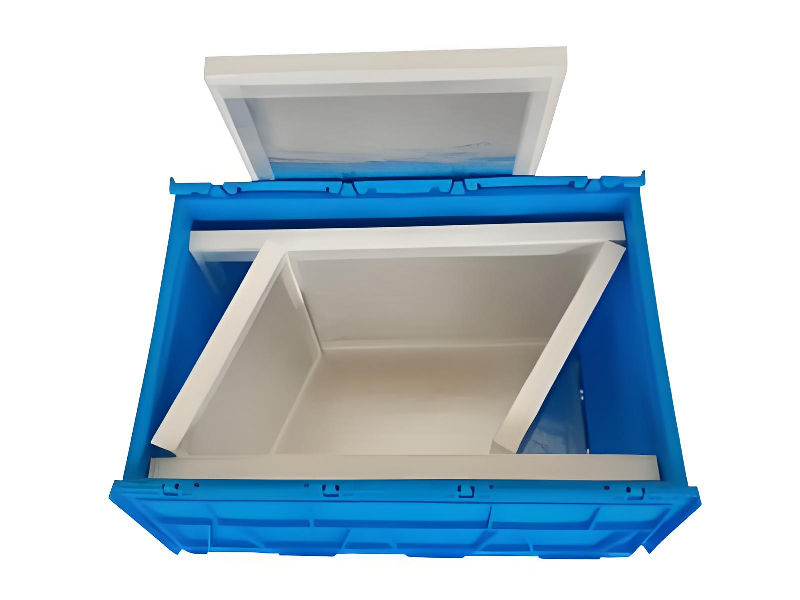

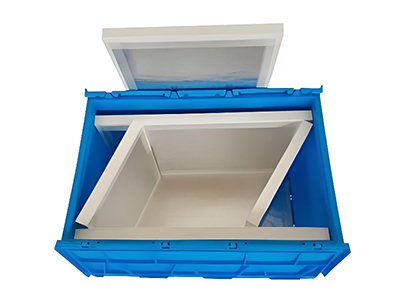

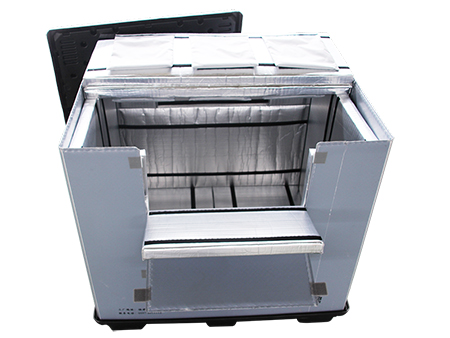

PP Plastic box + PU + VIP

This kind of vacuum insulated box is always used in the cold chain transportation of medicine, fresh food, and other types of food. Temperature indicator is offered for you to take temperature control.

Features
  • Detachable and can be folded to a quarter of the original height;
  • Vacuum insulation panel should be stored separately;
  • Custom color and open molding;
  • Anti-Skid bottom;
  • Energy-saving and environment-friendly;
  • Cost-effective: composite panel can be changed by single;
Parameters
Box Type Internal size External size Internal Volume Box Thickness Duration Time (2~8℃) PCM Weight
STZZ-V45 485*315*300 595*400*365 45L 25mm 12~48h 4~12kg
STZZ-V360 1060*660*515 1200*800*800 360L 50mm 24~72h 10~26kg
STZZ-V605 1060*860*680 1140*940*760 605L 50mm 24~72h 16~40kg
