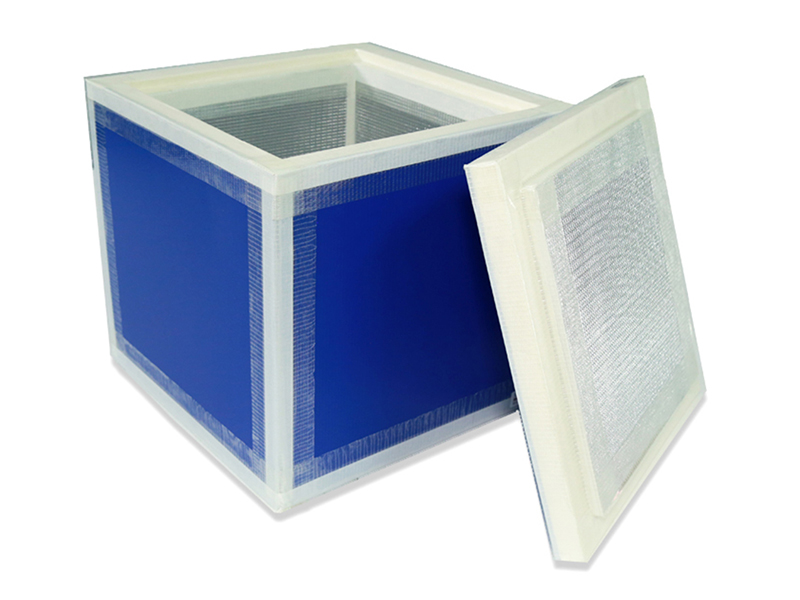

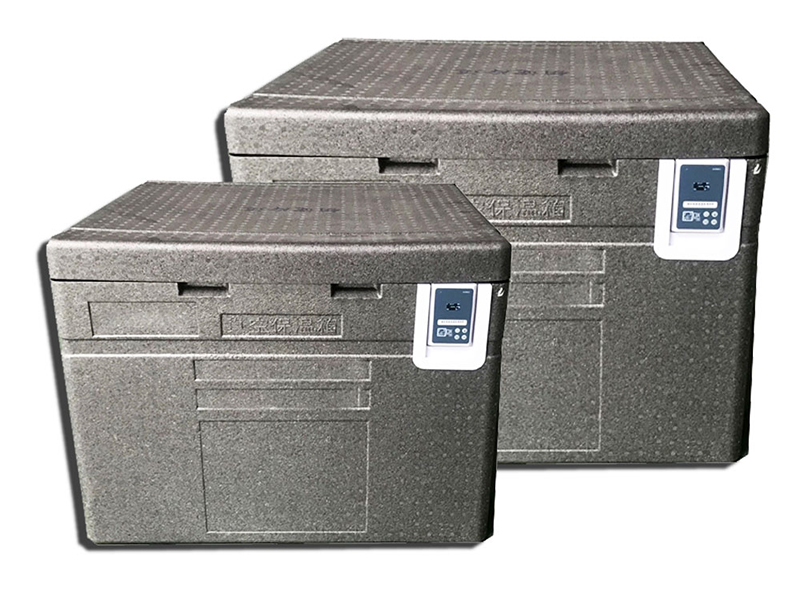

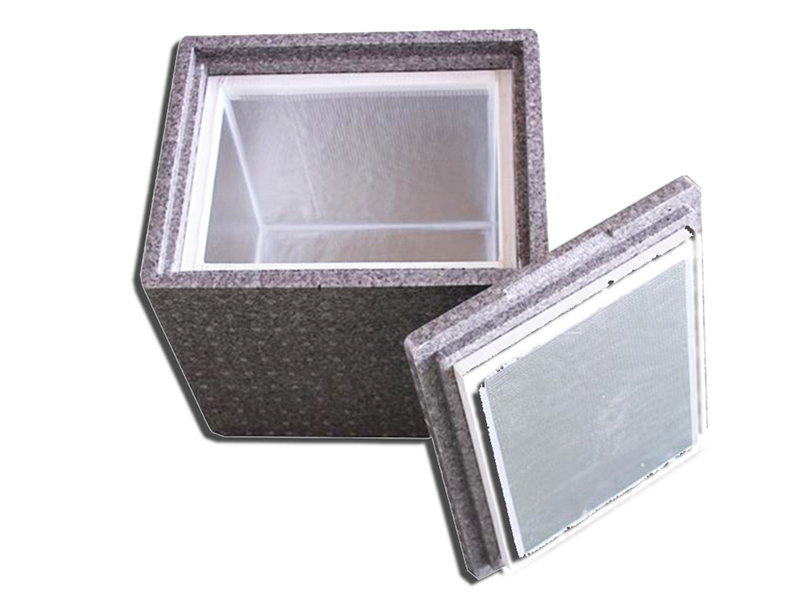

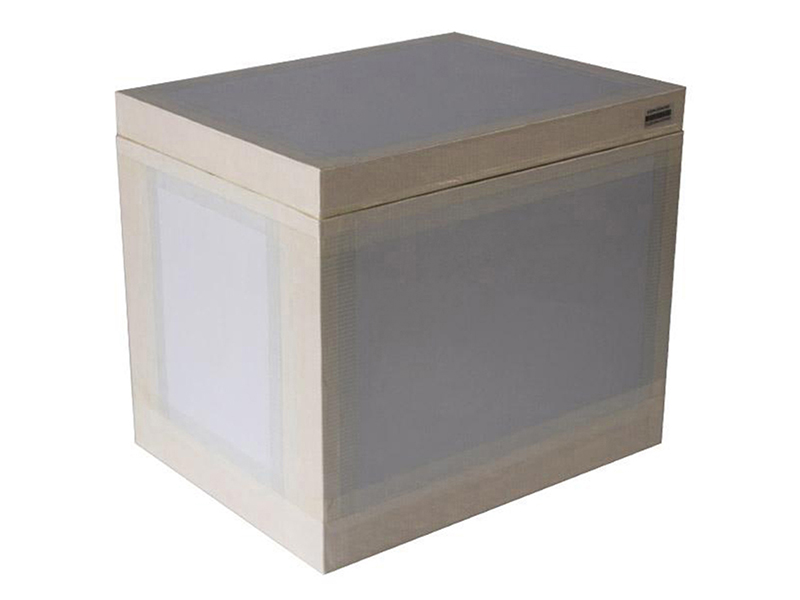

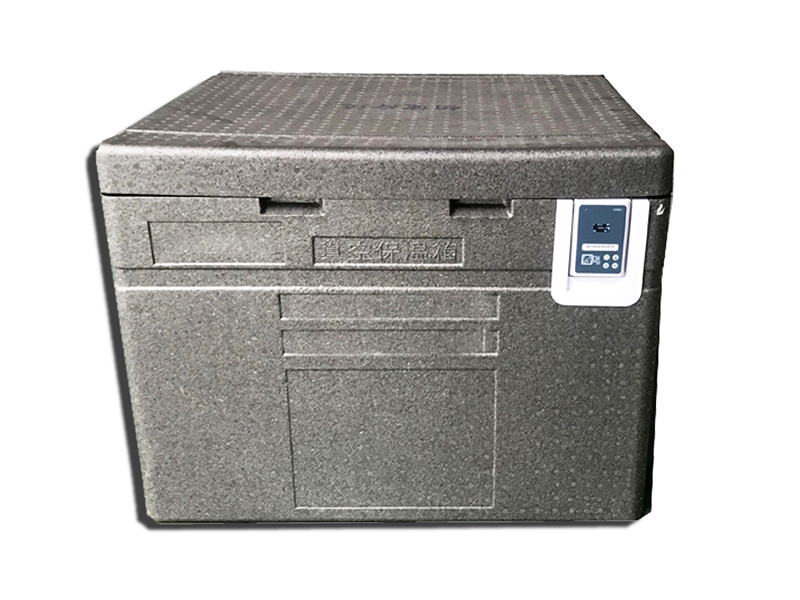

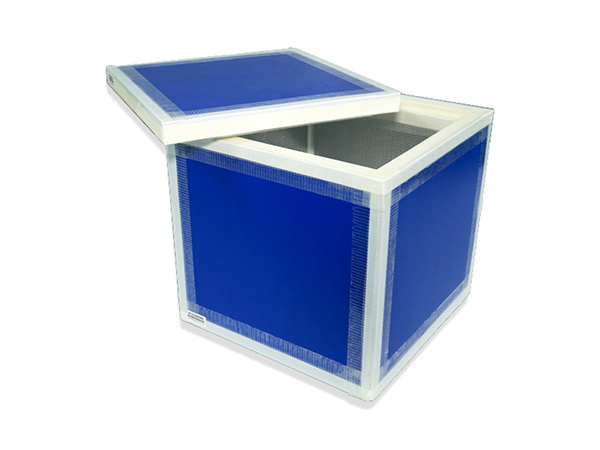

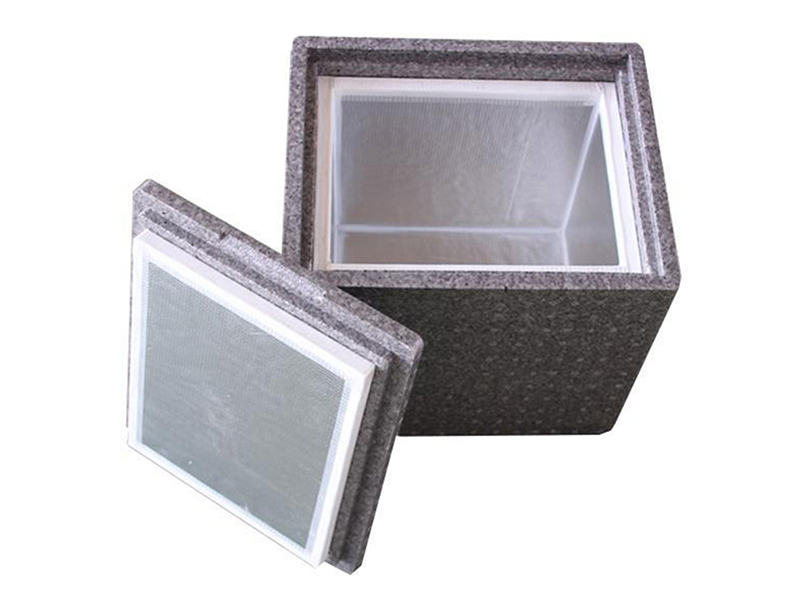

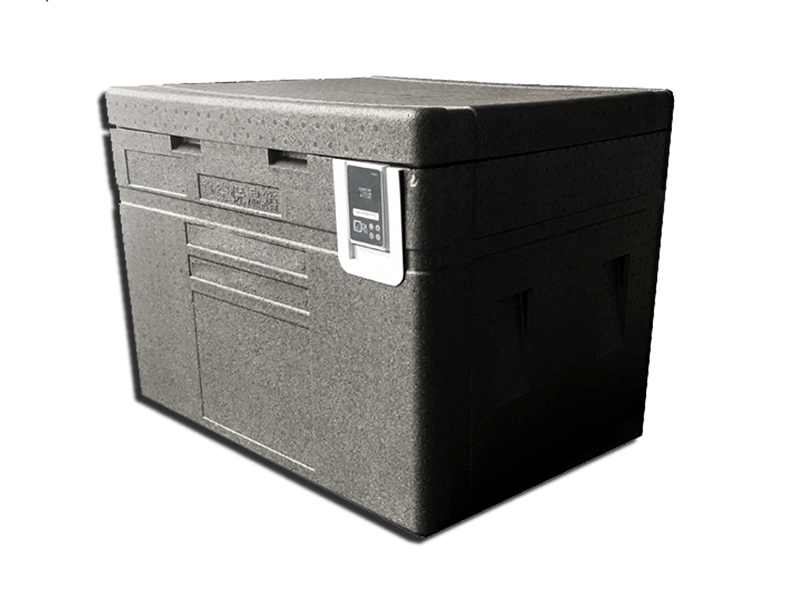

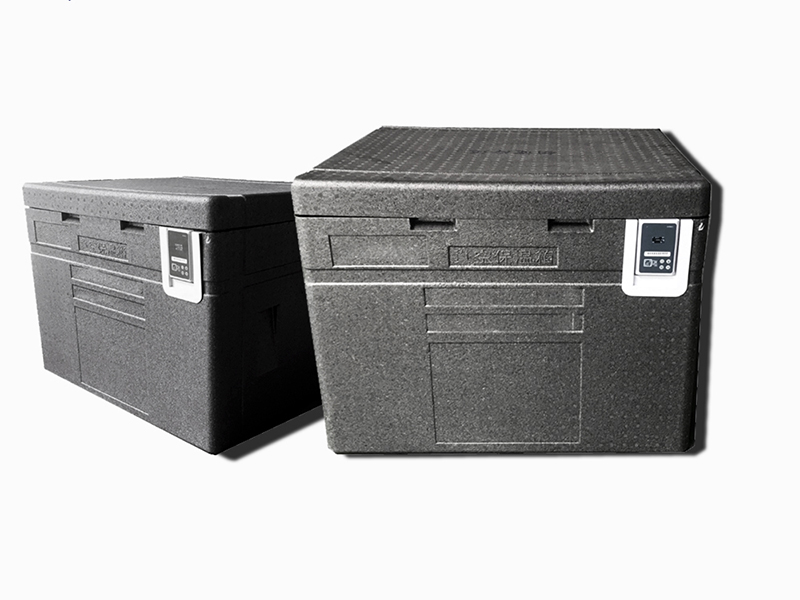

Cold chain transportation for pharmaceuticals, fresh, food, etc
| Box Type | Internal Size | External Size | Internal Volume | Box Weight | Temperature Range | Duration Time | Remark |
| STZH-V13 | 300*230*200 | 380*310*280 | 13.1L | 3.52 | 15~25℃ 10~20℃ 2~8℃ -1~3℃ -25~-15℃ -30~-20℃ |
>24h >48h >72h >96h >120h |
Customized size is acceptable |
| STZH-V24 | 290*290*290 | 390*390*390 | 24L | 6.06 | |||
| STZH-V49 | 365*365*365 | 455*455*455 | 49L | 8.43 | |||
| STZH-V56 | 500*375*300 | 590*465*390 | 56L | 9.53 | |||
| STZH-V91 | 450*450*450 | 550*550*550 | 91L | 12.50 | |||
| STZH-V100 | 540*490*375 | 630*580*465 | 100L | 12.90 | |||
| STZH-V140 | 520*520*520 | 620*620*620 | 140L | 16.90 |
We customize vacuum insulation panels to meet your specific requirements. Please email us or give us a call to find more information.
Solve the problem of high recovery cost and difficult recovery.
Large capacity, easy assembly and disassembly, folding and recycling
The quality of barrier material plays a key role in the service life of VIP. With the best barrier property, Al foil is widely used in barrier film for vacuum insulation panel.
Supertech fiberglass mat consisted of a uniformly distributed, thin fiberglass mat has the minimum solid skeleton heat transfer.
Fujian Saitech New Material Co., Ltd. is an industry-leading quality provider of systematic solutions in the field of vacuum insulation and energy saving, and a national high-tech enterprise, which started in 2007 and was listed on the A-share board of the Science and Technology Innovation Board of the Stock Exchange of China in February 2020 (stock abbreviation: Saitech New Material, stock code: 688398).
The company is headquartered in Longyan, Fujian, with five subsidiaries, including Firm, VIG, Sait Cold Chain, Sait Building Materials and Anhui Sait. The main business covers the research, development, production and sales of vacuum insulation panels (VIP) and ultra-fine glass wool core material, vacuum insulation glass (VIG), barrier film, adsorbent, vacuum encapsulation product performance testing, etc., serving the global refrigerator leader and expanding the cold chain, construction and other diversified applications.
The company has a strong technical research and development strength, master the vacuum insulation plate of the whole link of independent innovation of the core technology, access to a variety of national core patents amounted to 115, is an important industry standard maker, is the vacuum insulation material industrialization promoter.
The company's series of products are sold all over the world, among which, the domestic market share of vacuum insulation panels exceeds 30%; the cumulative global sales volume exceeds 35 million square meters. With intelligent and integrated production capacity, the company will continue to provide systematic insulation and energy-saving solutions for the world and take care of the new green life of human beings!
