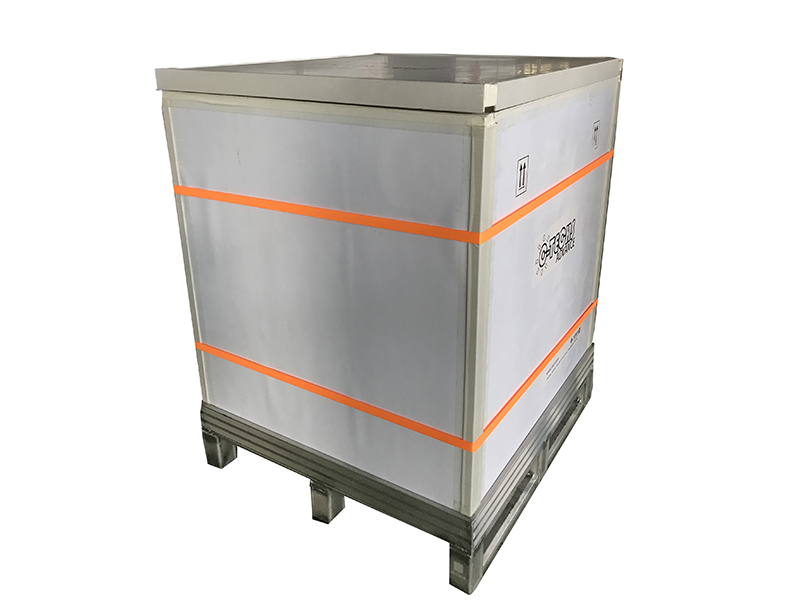

Vaccine Insulated Pallet Shipper

  • Vaccine Insulated Pallet Shipper
  • Vaccine Insulated Pallet Shipper

Solve the problem of high recovery cost and difficult recovery.
Large capacity, easy assembly and disassembly, folding and recycling

Features
  • Lower logistics recycling costs

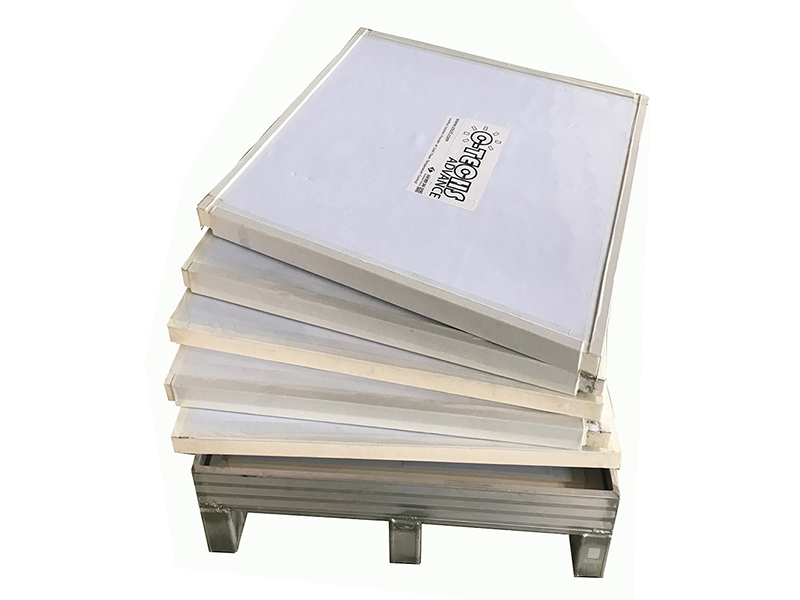

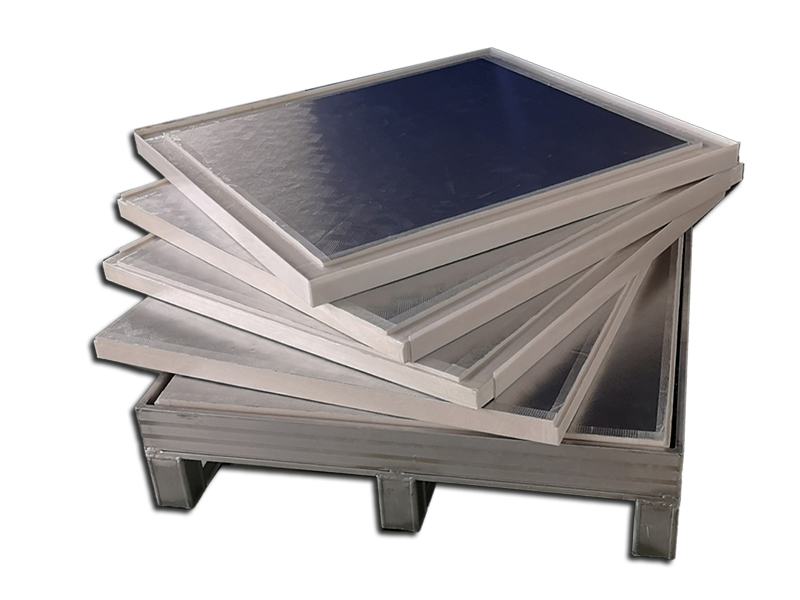

    This insulated pallet shipper can be divided into six pieces of insulation boards and stack together when recycled or not used. In this way, two thirds volume is reduced. The logistic cost reduction is obvious for clients when purchasing or recycling this product.
  • Simple cargo handling process
    • Vaccine Insulated Pallet Shipper
    • Vaccine Insulated Pallet Shipper

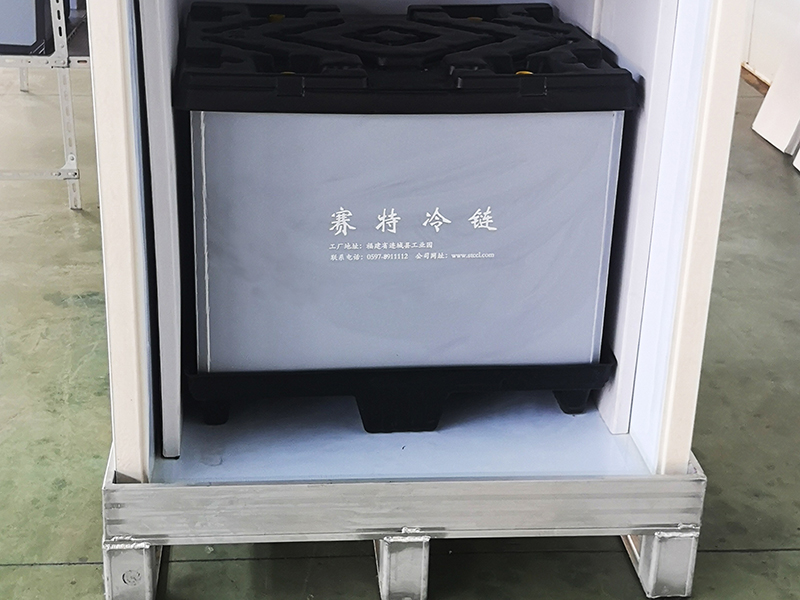

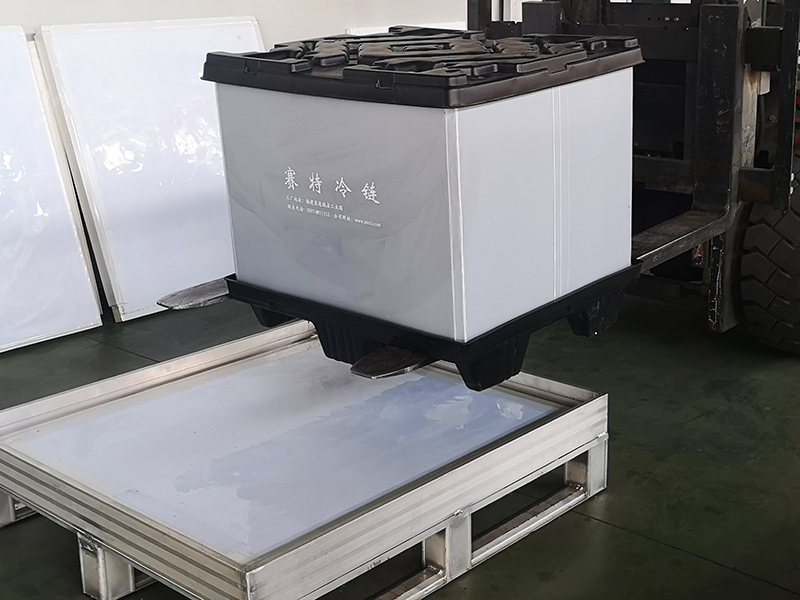

    When loading the goods, the forklift can be used to directly place the goods with the pallets in the bottom of the shipper in any direction, and then assemble the insulated pallet shipper with insulation boards. Same way to be used when unloading goods, which greatly reduces the labor cost.

  • Unique ice box fixing bracket
    Vaccine Insulated Pallet Shipper

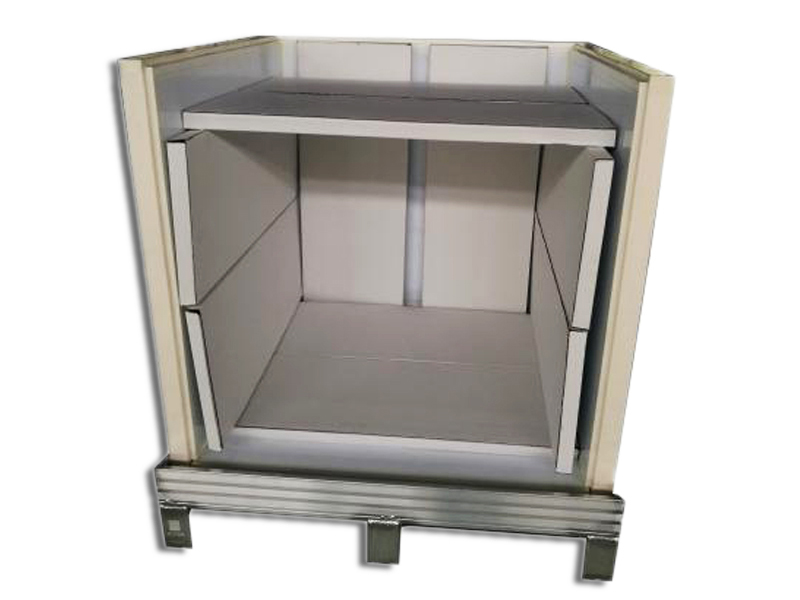

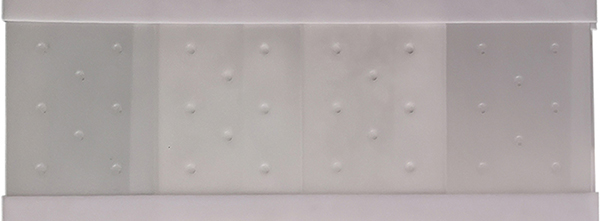

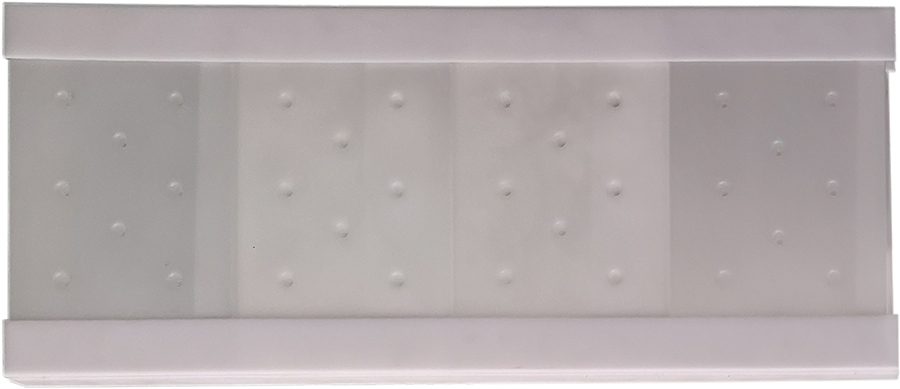

    Using a special ice box fixing bracket and making full use of the existing ice box to form a large ice box to match the large box, no need to open mold and easy handling.

  • Customizable size design
    • Vaccine Insulated Pallet Shipper
    • Vaccine Insulated Pallet Shipper

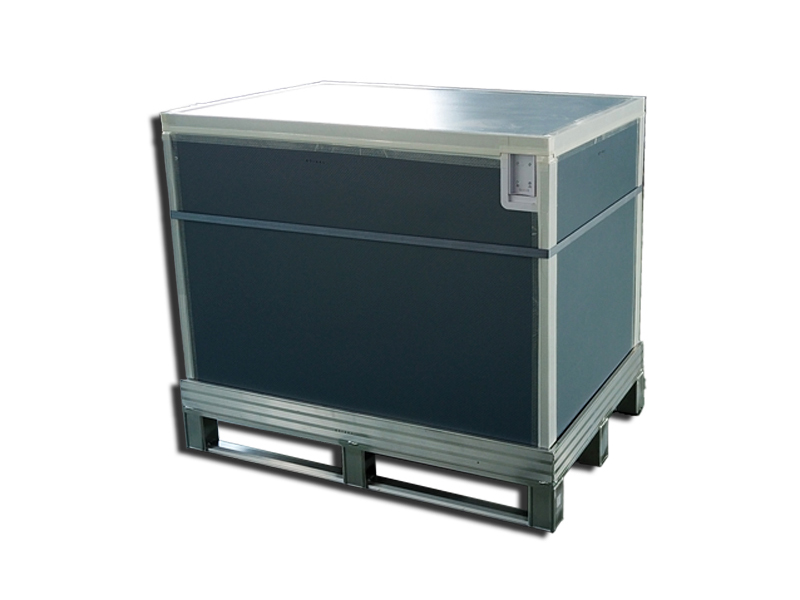

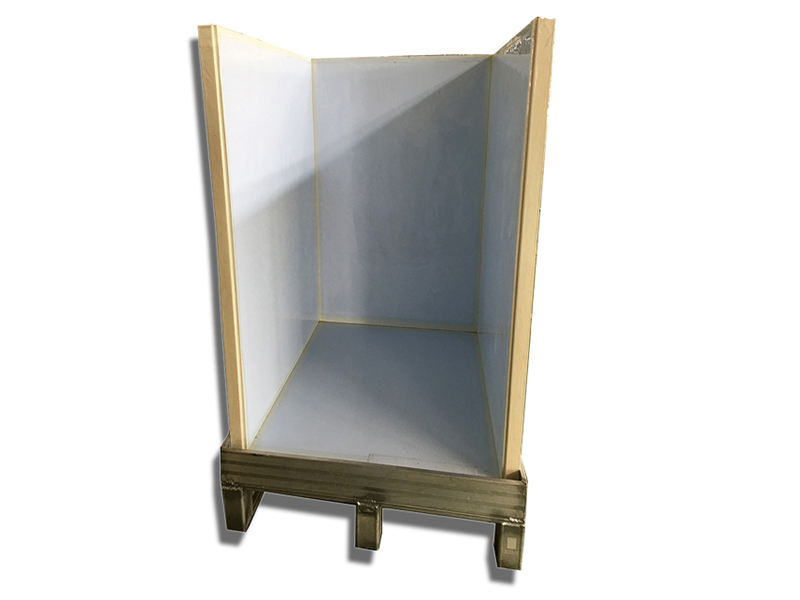

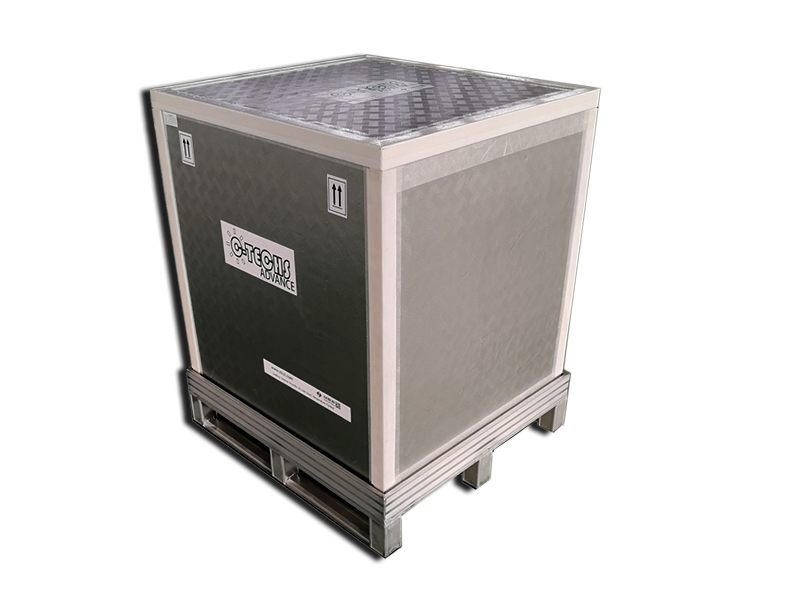

    The insulated pallet shipper is produced by our unique modular production process, which can be designed in various sizes and surface material appearance according to customer requirements, no need to open mold.

  • Excellent insulation barrier performance

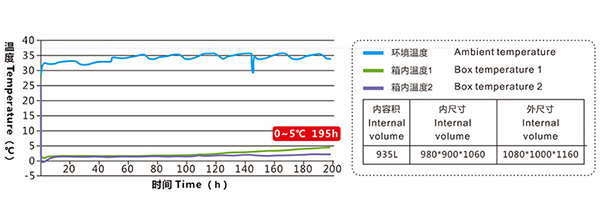

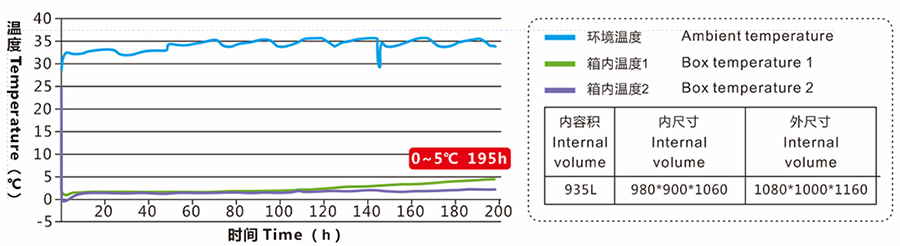

    The insulated pallet shipper uses PU-VIP as the core insulation material. After actual validation, the insulation time can reach 200 hours, keeping the temperature range 0~5℃ under the harsh environment with average temperature of 35℃.

    Vaccine Insulated Pallet Shipper
Applications

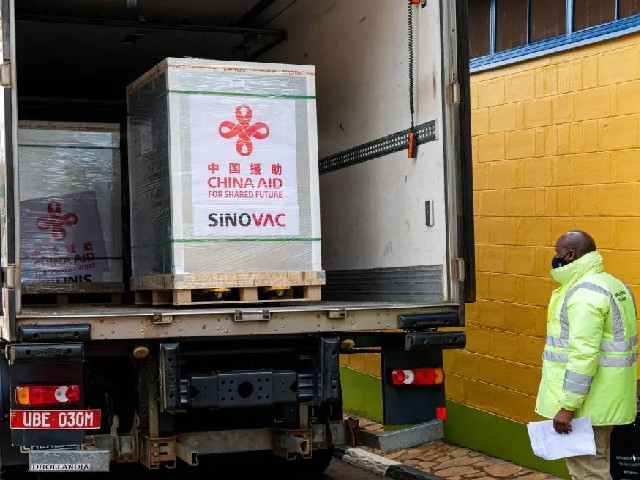

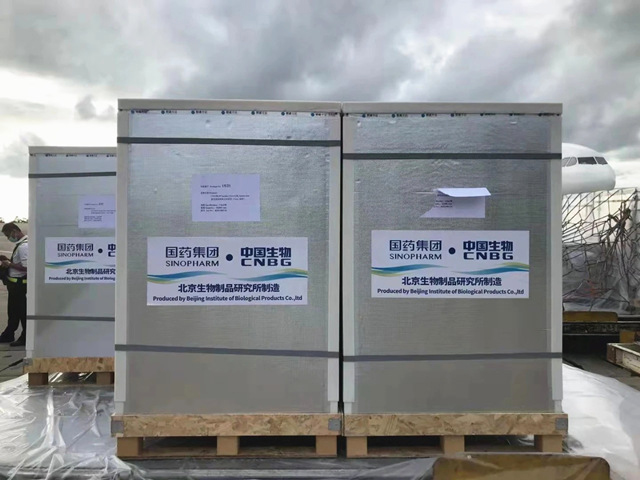

The insulated pallet shipper can be used in the cold chain transportation of biological agents, medicine, vaccines, fresh food and other fields.

  • Vaccine Insulated Pallet Shipper
  • Vaccine Insulated Pallet Shipper
Specifications
Product name External size(mm) Internal volume ( L ) External volume ( L ) Box weight ( kg ) Panel stacking height Performance (h) Remark

Insulated Pallet Shipper
1100*1020*1180 993.6 1324 64.8 300mm 0~5℃ 200h 2~8℃ 160h Easy assembly and disassembly; repeated use
Product Details
  • Vaccine Insulated Pallet Shipper
  • Vaccine Insulated Pallet Shipper
  • Vaccine Insulated Pallet Shipper
  • Vaccine Insulated Pallet Shipper
