  • Products
  • Vaccine Carrier Box

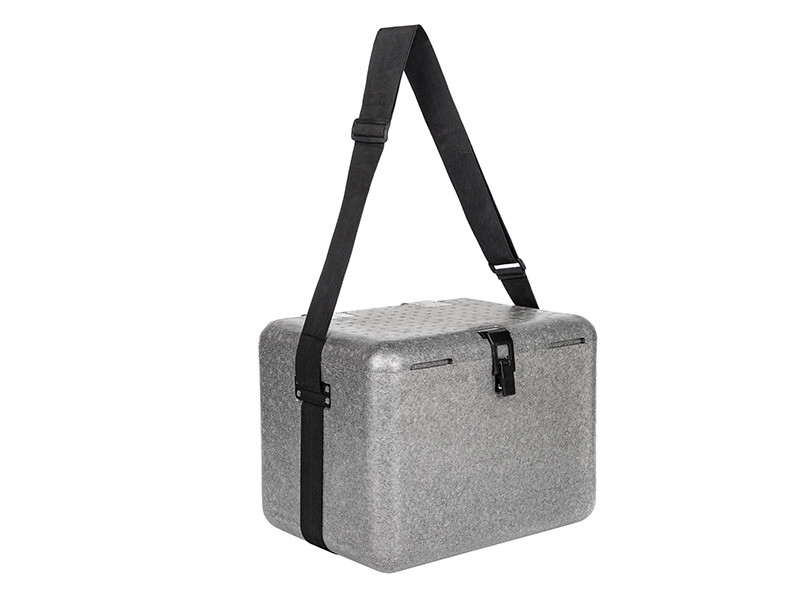

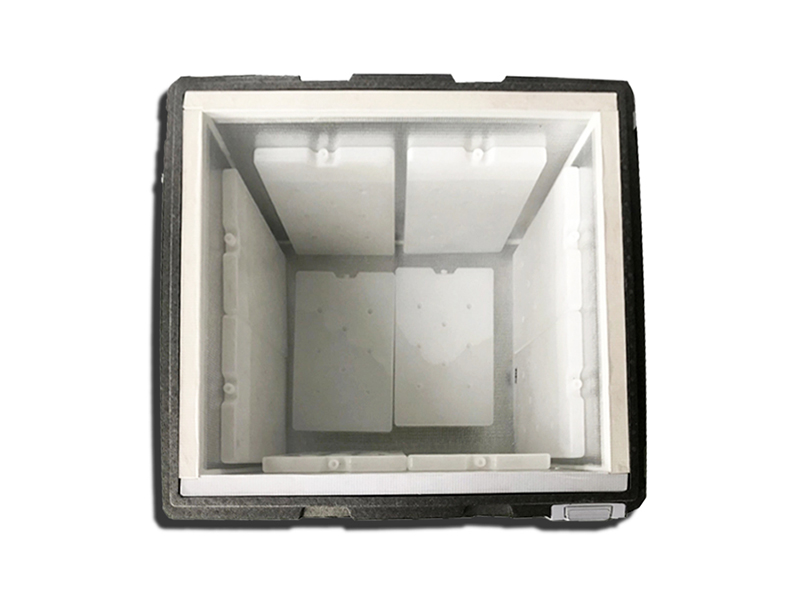

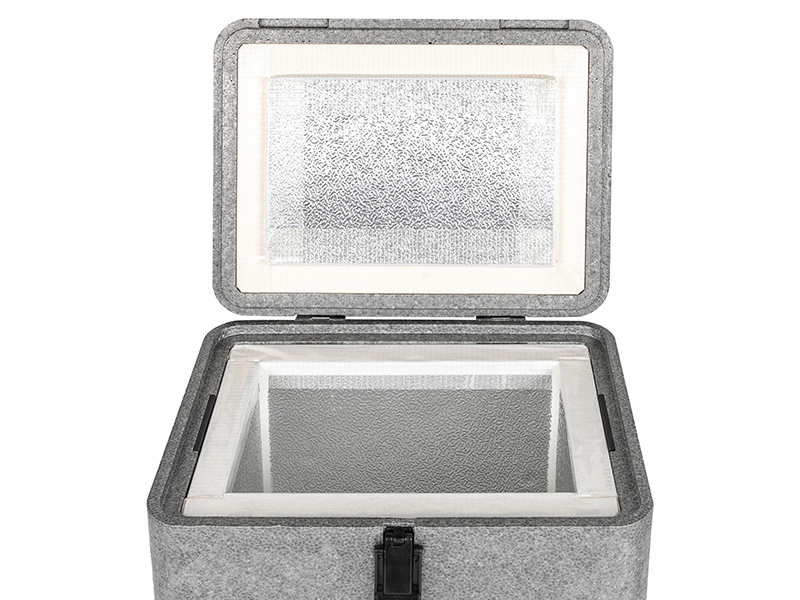

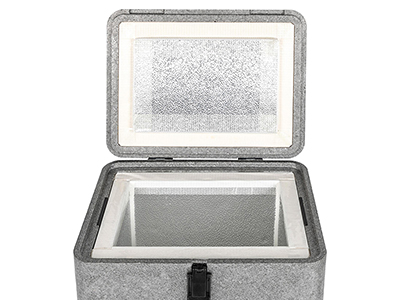

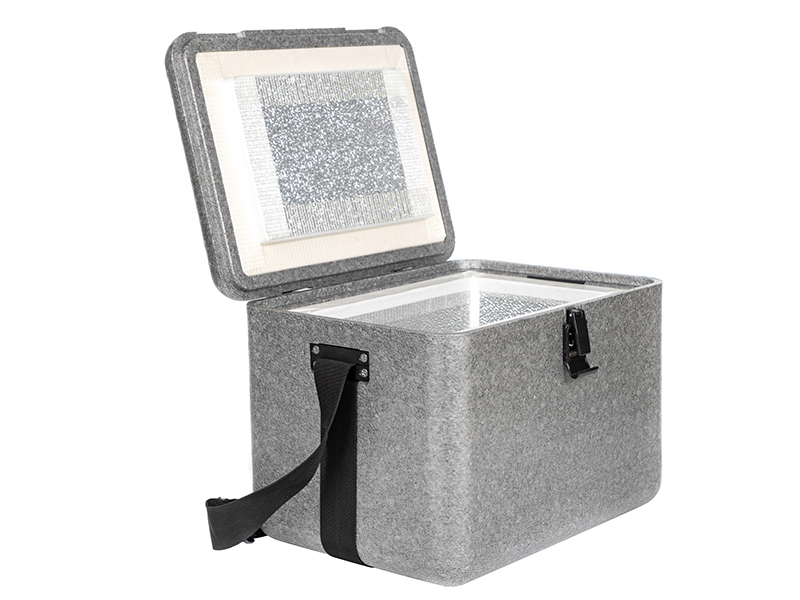

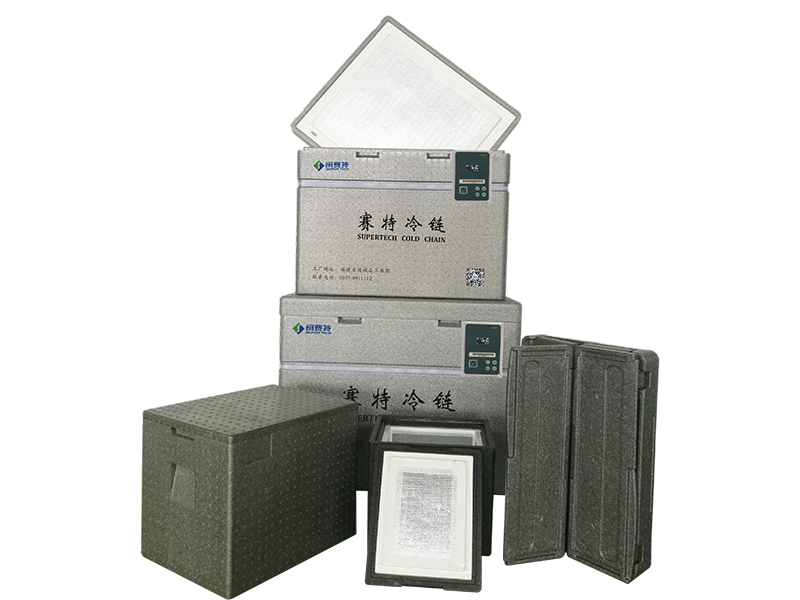

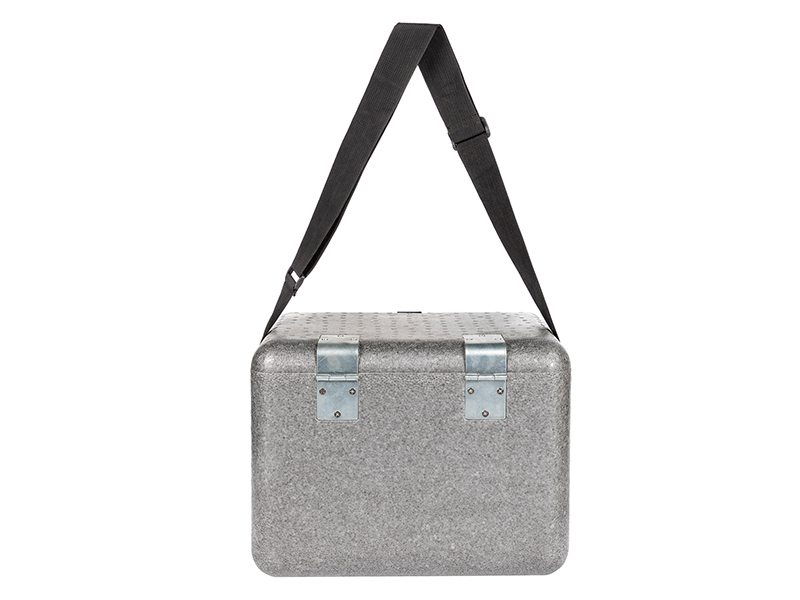

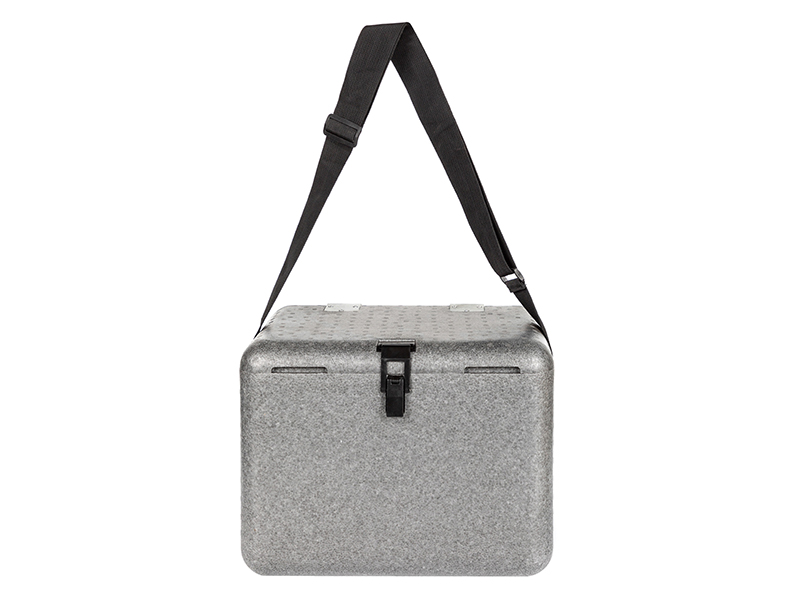

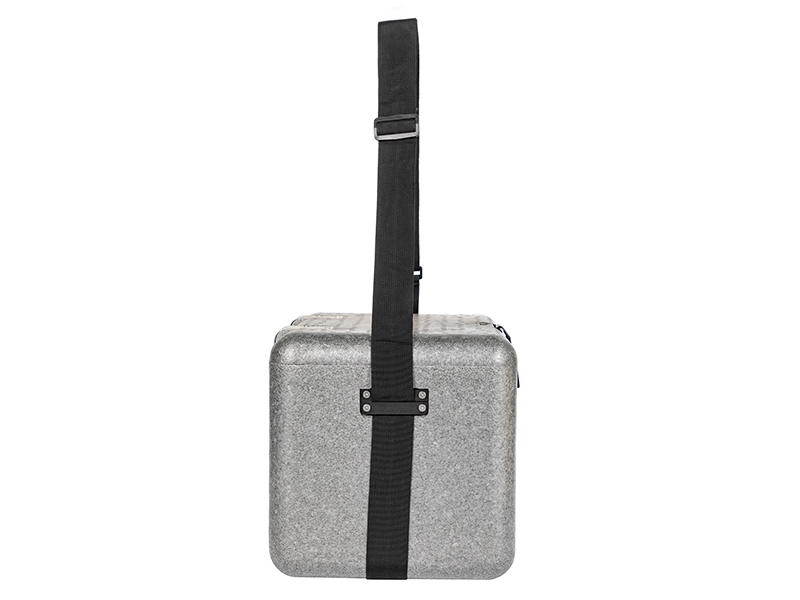

Vaccine Carrier Box

Vaccine Carrier Box

Multi-use passive cooled boxes of 2-8°C with up to 48-72 hours retention with optional remote monitoring capability.
Vaccine Carrier Box
Vaccine Carrier Box

Applications

Portable heat preservation demand for storage and deliveries of pharmaceuticals, fresh and food, etc.

Features

  • Combination of High Performance VIP and EPP
  • Operating Environment: -30℃~60℃
  • Temperature Range: optional (10~20℃, 2~8℃, -1~3℃, -15~-25℃)
  • Duration Time: more than 72h
  • Customized Mold Acceptable
Request a Quote

Specifications

Box Type Internal Size External Size Internal Volume Box Weight Box Thickness Insulation Time (2~8℃) PCM Weight
STEPP-V12 300*200*190 400*300*300 12L 3.3kg 50mm 48h 4.7kg
STEPP-V28 370*270*290 490*380*400 29L 7.6kg 55mm 60h 7.7kg
STEPP-V33 540*390*330 660*510*478 71.6L 12.2kg 60mm 72h 15kg
STEPP-V54a 630*550*450 760*680*580 156L 20kg 60mm 72h 23.2kg

Product Details

  • Vaccine Carrier Box
  • Vaccine Carrier Box
  • Vaccine Carrier Box
  • Vaccine Carrier Box
  • Vaccine Carrier Box
  • Vaccine Carrier Box
  • Vaccine Carrier Box
Vacuum Insulation Panel Manufacturer

We customize vacuum insulation panels to meet your specific requirements. Please email us or give us a call to find more information.

caroline@supertech-vip.com
+86-18650183889
Contact Us Now!
Get in Touch
Other Products
    1. Pharmaceutical Cooler Box

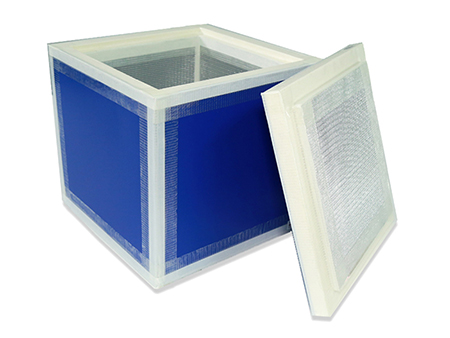

      Pharmaceutical Cooler Box

      Cold chain transportation for pharmaceuticals, fresh, food, etc

      View All

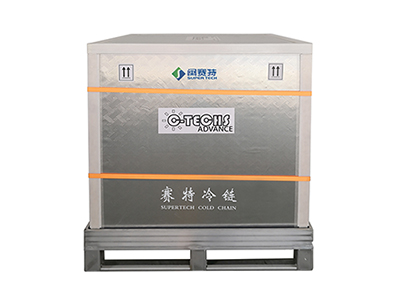

    1. Vaccine Insulated Pallet Shipper
      Vaccine Insulated Pallet Shipper

      Solve the problem of high recovery cost and difficult recovery.
      Large capacity, easy assembly and disassembly, folding and recycling

      View All
    1. Barrier Film for Vacuum Insulation Panel

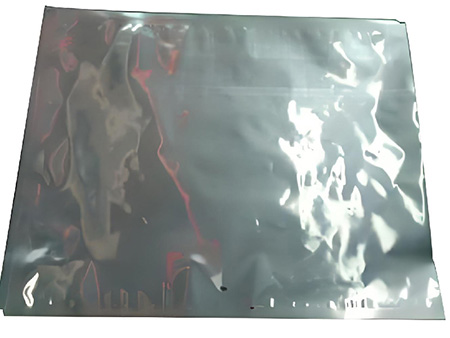

      Barrier Film for Vacuum Insulation Panel
