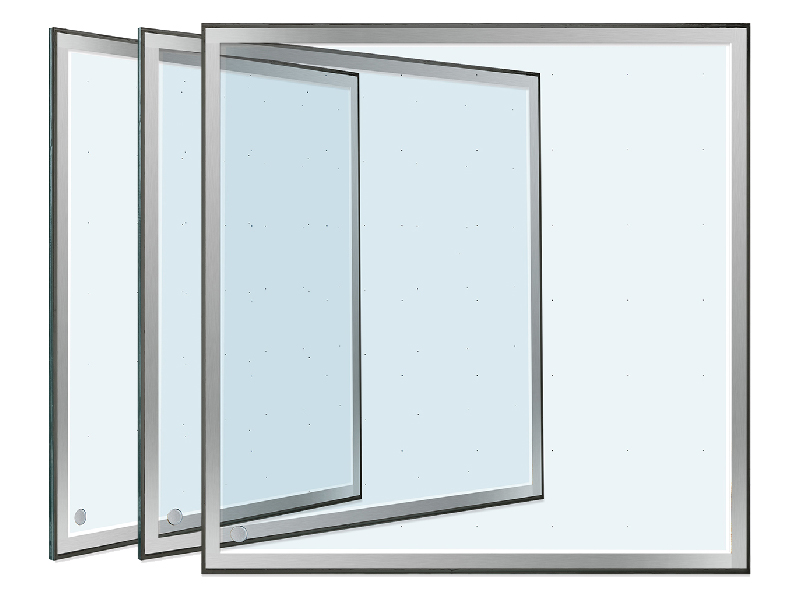

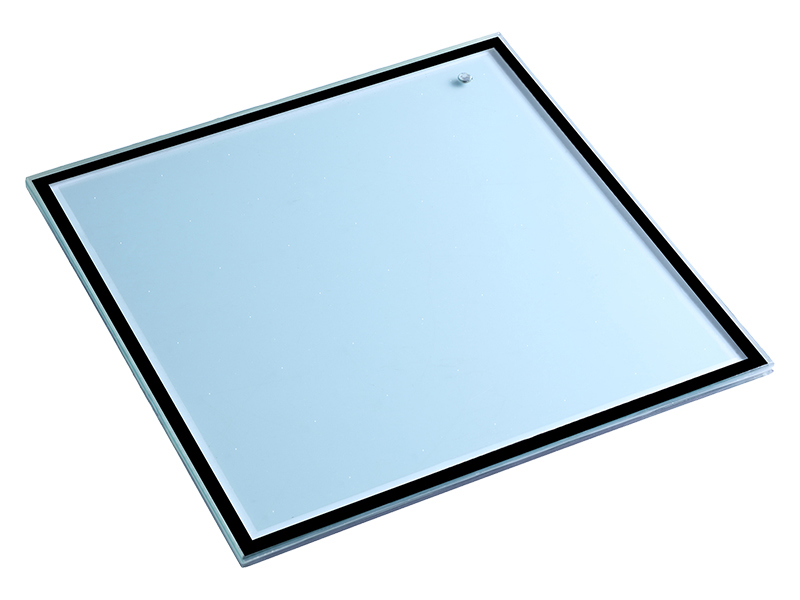

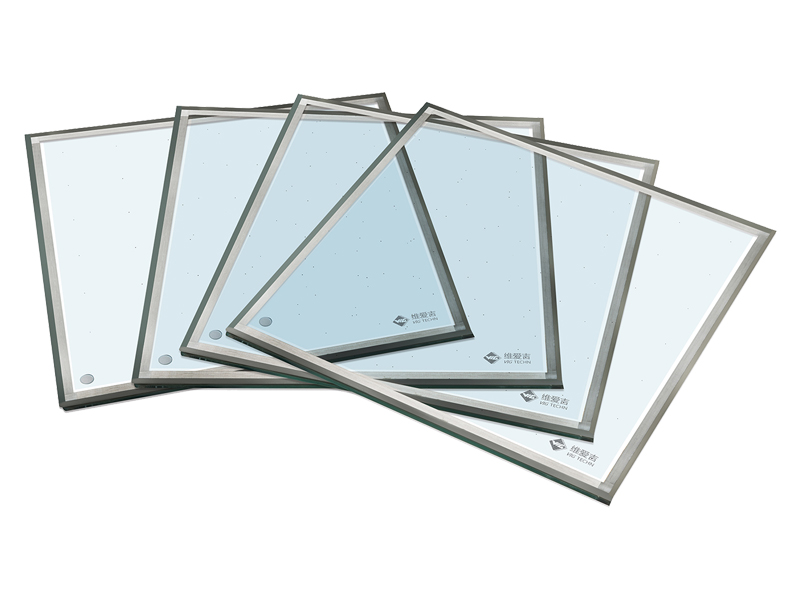

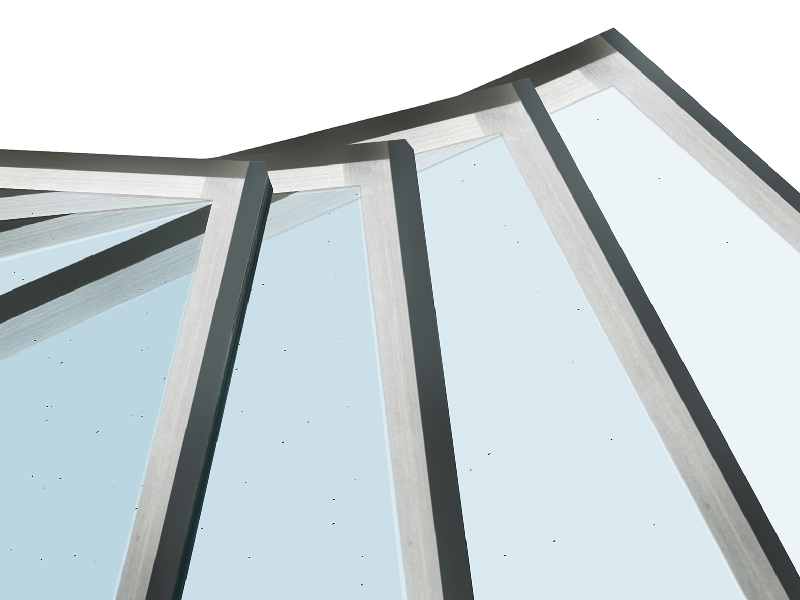

Vacuum Insulating Glass (VIG)

Vacuum Insulating Glass (VIG)

Vacuum Insulating Glass (VIG)
  • Vacuum Insulating Glass (VIG)
  • Vacuum Insulating Glass (VIG)
  • Vacuum Insulating Glass (VIG)
Vacuum Insulating Glass (VIG)

Designed to maximize the benefits of vacuum insulation by combining advanced materials and cutting-edge manufacturing techniques. Made of low-emissivity coated tempered glass, high-performance desiccants, and lead-free alloy flexible solder, VIG offers exceptional thermal insulation while staying transparent—a great fit for modern architecture and energy-efficient building systems.

VIG is sealed in a high-vacuum environment, unlike conventional insulated glass, therefore guaranteeing exceptional thermal performance without requiring air extraction apertures. Ideal for ultra-thin, energy-efficient windows, this creative design lowers air leakage and provides a degree of insulation equivalent to, or even better than, walls with far thicker insulating layers.

Request a Quote

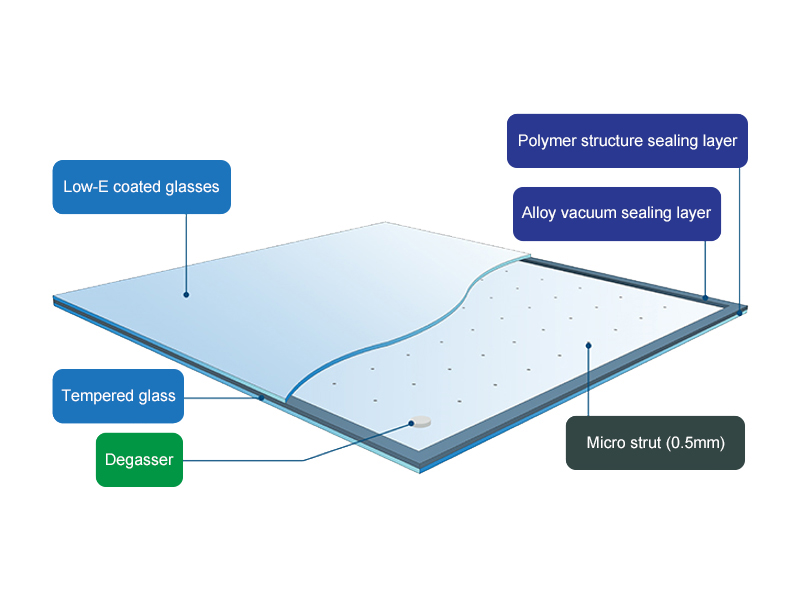

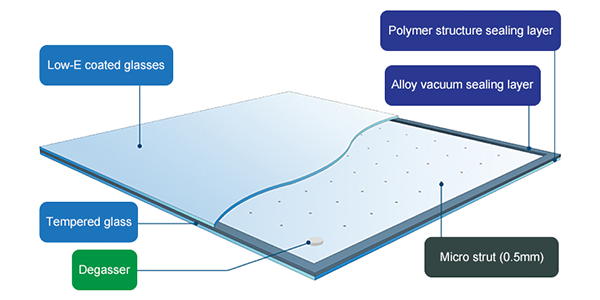

What the Features of Vacuum Insulating Glass (VIG)

Vacuum Insulating Glass (VIG)
  • Low-E coated glasses
  • Polymer structure sealing layer
  • Alloy vacuum sealing layer
  • Micro strut (0.5mm)
  • Tempered glass
  • Degasser
  • Lead-free alloy sealing. Sealed with lead-free alloy flexible solder for durability and environmental safety.
  • No air extraction port. Double-sealed for superior high-vacuum performance, eliminating air leakage and improving insulation efficiency.
  • Exceptional thermal efficiency. With a heat transfer coefficient comparable to walls, VIG acts as transparent ultra-thin 'walls' in architectural applications, offering optimal insulation without compromising aesthetics.

Specifications

Model Structure Heat Transfer Coefficient (W/m²·K) Visible Light Total Solar Transmittance (g) Sunshade Coefficient (sc) Weighted Sound Insulation (db)
Transmittance (%) Outdoor Reflectivity (%) Intdoor Reflectivity (%)
VIG01 XTSLE+0.5V+YTC 0.6~0.8 40-70 < 30 < 30 0.35-0.5 0.4-0.6 36-40
VIG02 XTSLE+0.5V+YTC 0.4-0.6 40-70 < 30 < 30 0.3-0.5 0.4-0.58 36-40

Get in Touch!

If you’re curious or need further details, reach out to us directly. Our team is excited to assist you!

Application Examples

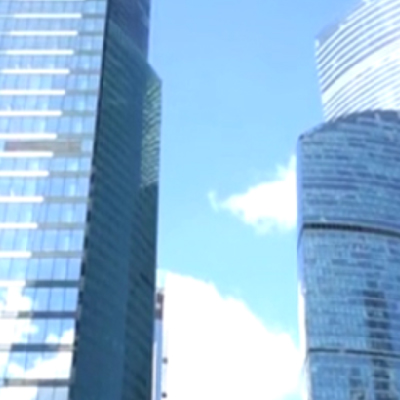

Vacuum Insulating Glass (VIG)Building exterior Wall

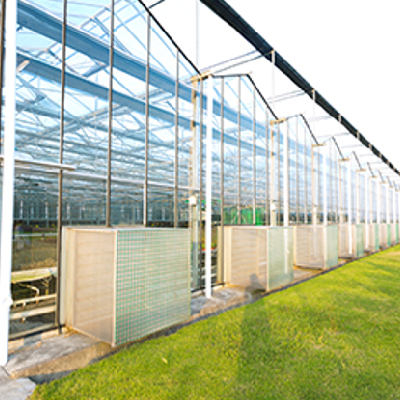

Vacuum Insulating Glass (VIG)Modern Greenhouse

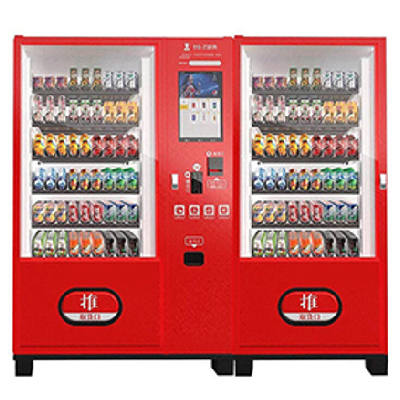

Vacuum Insulating Glass (VIG)Visual Vending Machine
Vacuum Insulating Glass (VIG)Railway Window
Vacuum Insulating Glass (VIG)Magnetic Whiteboard
Vacuum Insulation Panel Manufacturer

We customize vacuum insulation panels to meet your specific requirements. Please email us or give us a call to find more information.

caroline@supertech-vip.com
+86-18650183889
Contact Us Now!
Get in Touch
Other Products

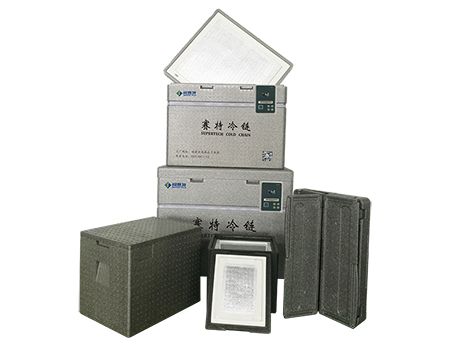

    1. Vaccine Carrier Box
