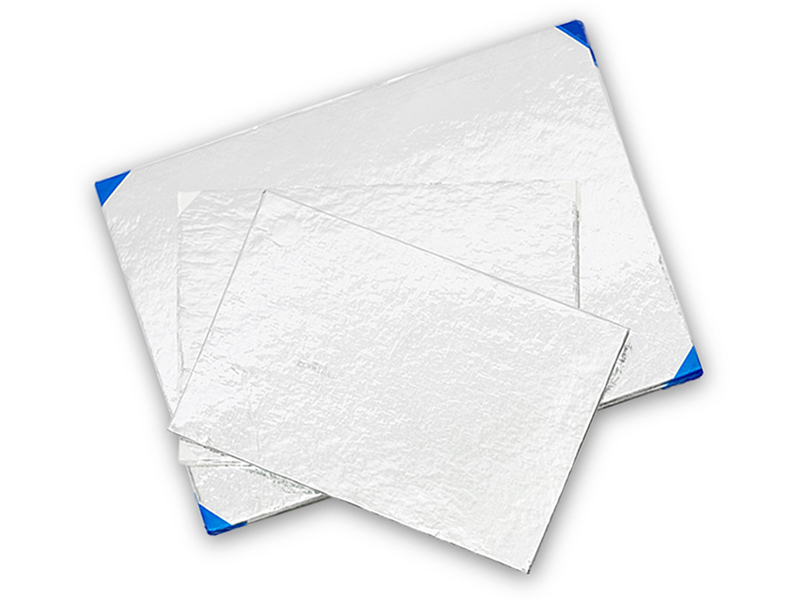

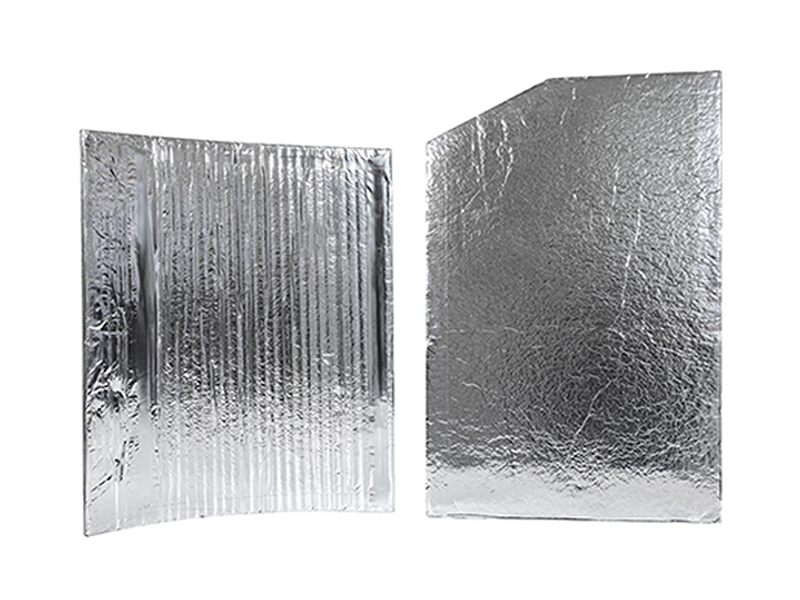

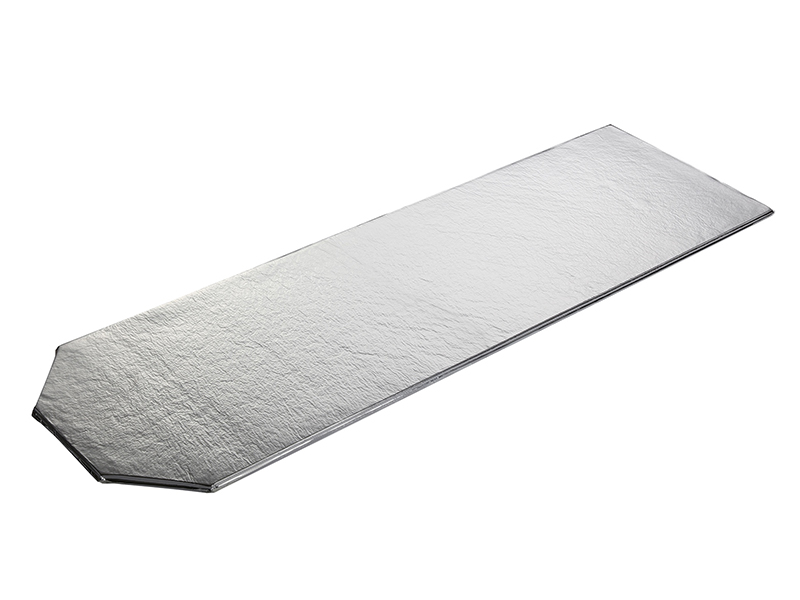

High Efficiency Vacuum Insulation Panel (VIP)

High Efficiency Vacuum Insulation Panel (VIP)

based on fiberglass core material
High Efficiency Vacuum Insulation Panel (VIP)
  • High Efficiency Vacuum Insulation Panel (VIP)
  • High Efficiency Vacuum Insulation Panel (VIP)
  • High Efficiency Vacuum Insulation Panel (VIP)
High Efficiency Vacuum Insulation Panel (VIP)

Vacuum insulation panel based on fiberglass core material, a new energy-efficient insulation material following the adiabatic principle for insulation, consists of three major parts: fiberglass core materials, getter materials/desiccants and high barrier laminates. As a special composite made of core materials and protective layers, it is integrated with the superiority of vacuum insulation and micro-pore heat insulation, effectively stopping convective heat transfer to perfect thermal insulation. With an excellent initial thermal conductivity of lower than 0.0025 W/m. K and even 0.0015w/m.k to the minimum, the thermal resistance of our vacuum insulation panel based on fiberglass core material is ten times higher than conventional insulation material and even more. Compared with traditional PU insulation materials, energy-saving and environment-friendly vacuum insulation panel contains no ODS (ozone depleting substances) in its manufacturing process and widely applying to thermal insulation products such as refrigerators, freezers, refrigerated trucks, cold storages, insulated shipping container, ice storage tanks, etc.

Request a Quote

What the Features of High Efficiency Vacuum Insulation Panel (VIP)

  • Excellent initial thermal conductivity of less than 0.0015 W/m. K
  • 6-11 micron diameter of fiberglass core material in compliance with EU standards
  • Lower price and thermal conductivity compared with fumed silica core material
  • Customized size: 5-30mm thickness, Max Width 800mm, Max Length 1800mm
  • Thermal resistance effect is 8~10 times more effective than traditional materials
  • Perfomes optimally in environments from -40℃~80℃

Application Examples

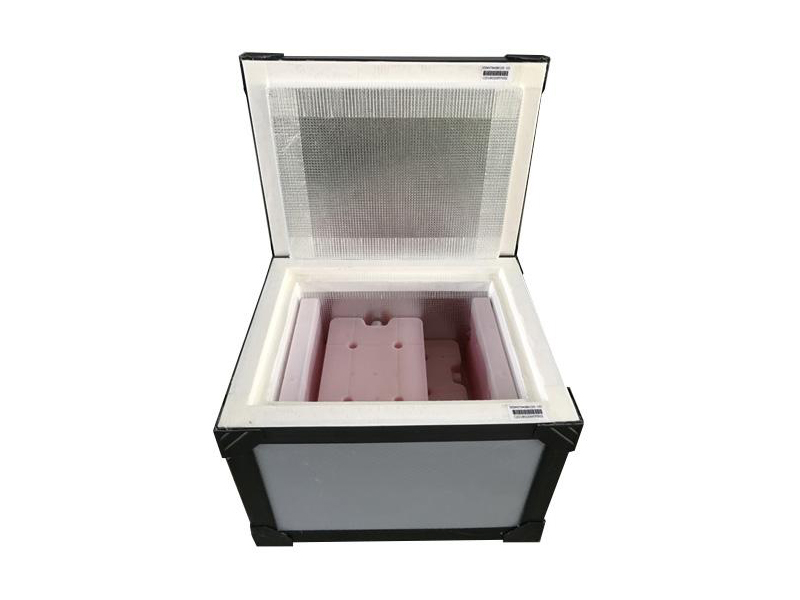

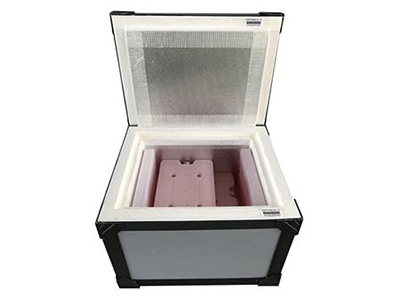

High Efficiency Vacuum Insulation Panel (VIP)Vacuum Insulation Panel for Temperature Controlled Packaging

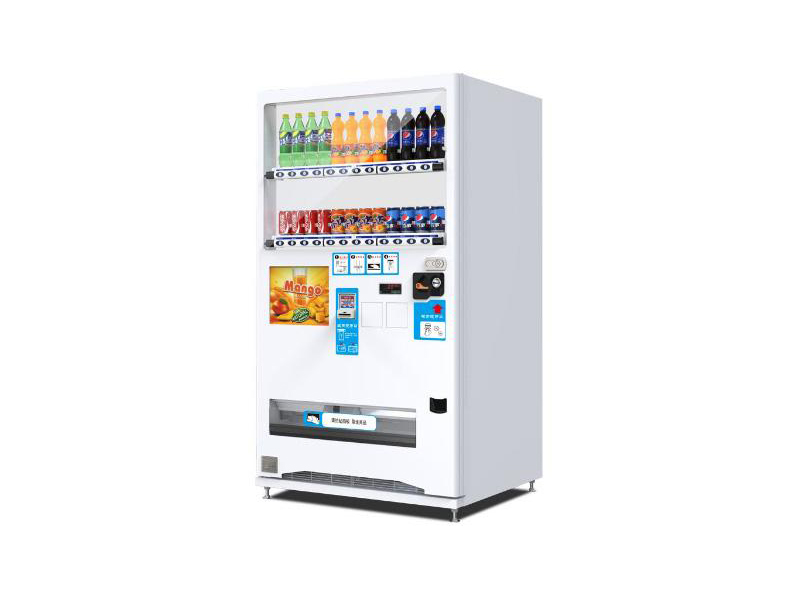

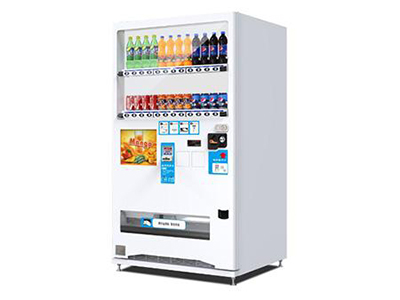

High Efficiency Vacuum Insulation Panel (VIP)Vacuum Insulation Panel for Refrigeration Appliances

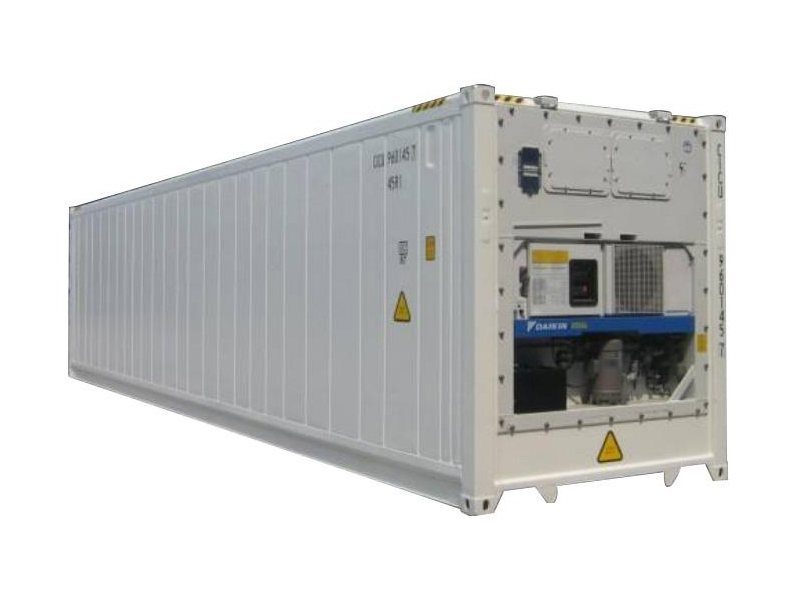

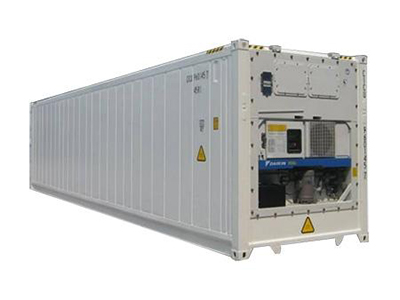

High Efficiency Vacuum Insulation Panel (VIP)Vacuum Insulation Panel for Insulated Shipping Container

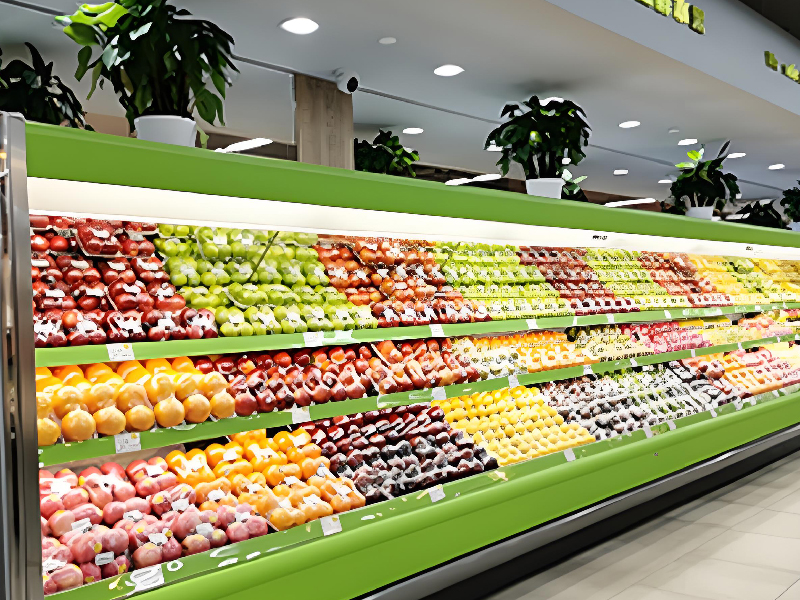

High Efficiency Vacuum Insulation Panel (VIP)Vacuum Insulation Panel for Frozen Food Display Case
High Efficiency Vacuum Insulation Panel (VIP)Vacuum Insulation Panel for Refrigerated Truck

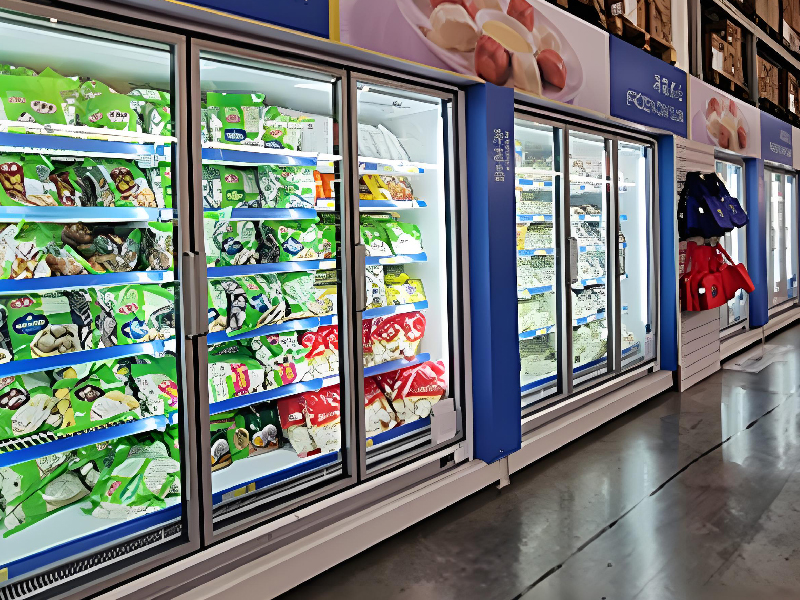

High Efficiency Vacuum Insulation Panel (VIP)Vacuum Insulation Panel for Display Freezer
Vacuum Insulation Panel Manufacturer

We customize vacuum insulation panels to meet your specific requirements. Please email us or give us a call to find more information.
