Glass Microfiber VIP

Glass Microfiber Vacuum Insulation Panel (VIP)

based on fiberglass core material
Glass Microfiber VIP
  • Glass Microfiber VIP
  • Glass Microfiber VIP
  • Glass Microfiber VIP

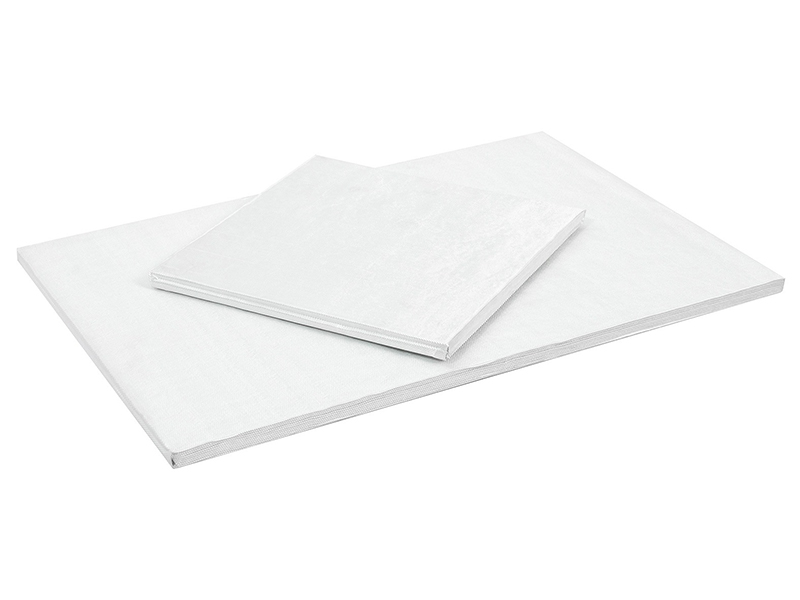

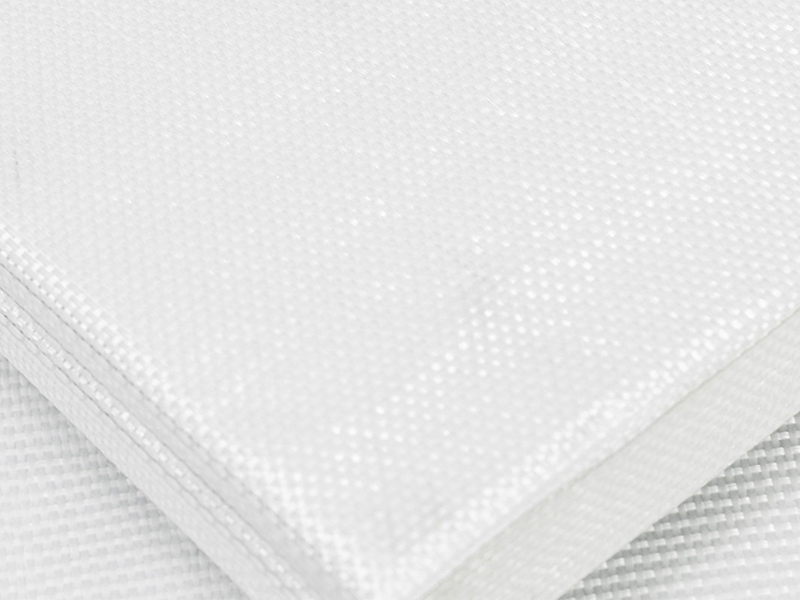

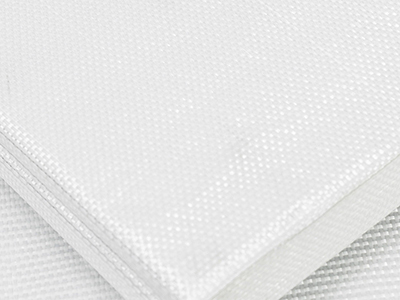

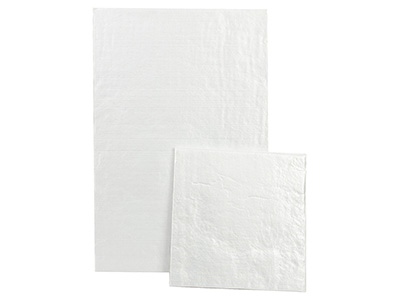

Glass Microfiber Vacuum Insulation Panel (VIP)

To provide extraordinary thermal conductivity and low rebound performance, the Glass Microfiber VIP blends a hot-pressed glass microfiber core with alkali-free fiberglass film. This VIP is perfect for uses where high-performance thermal protection is needed since it has a rebound rate of less than 10% and thermal conductivity < 0.004 W/m·K, so offering exceptional insulation efficiency.

Ideal for both commercial and industrial applications, this VIP is built to provide long-lasting stability and energy-saving insulation with its sophisticated design.

Features

  • Uses alkali-free fiberglass film, with hot pressed glass microfiber core material.
  • Low rebound rate expansion coefficient less than 10% for long-term stability.
  • Better thermal conductivity, lower then 0.004 W/m·K
Request a Quote

Comparison of Specifications

Core Material Fiberglass Maximum Size (mm) 700×1200
Film Barrier Film Thickness (mm) 6 to 30
Color White Density (kg/m³) 300 to 350
Temperature Range (℃) -80 to 85 Length And Width Tolerance (mm) ±5
Structure Rectangular Thickness Tolerance (mm) ±3
Standard Size Customized Size Thermal Conductivity (W/m·K) < 0.005

Need Assistance?

Have questions or want more information? Don’t Hesitate to Reach Out! Our team is here and ready to help you.

Application Examples

Glass Microfiber VIPElectric vehicle battery
Glass Microfiber VIPEnergy storage and insulation
Glass Microfiber VIPAerospace engineering
Vacuum Insulation Panel Manufacturer

We customize vacuum insulation panels to meet your specific requirements. Please email us or give us a call to find more information.
